Cut the cable.
Keep the control.Wireless MPG handwheel pendants for CNC machines
10+ years of wireless MPG pendants powering shop floors worldwide. Sub-millisecond handwheel response, no spring cable, no oil-cracked conductors.
Why shops replace wired MPG pendants
A spring cable is the first thing on a machine to fail. Every wired pendant on your floor is a consumable; wireless removes the failure mode entirely. Read the full comparison
Cable drag at the handwheel
Operators fight a 3 m coil while setting a 0.001 mm touch-off. Feel is lost exactly where it matters.
Conductor fatigue in months
Flexed thousands of cycles a shift, spring cables crack internally. Intermittent axis faults follow.
Coolant and oil ingress
Connector shells sit in the swarf tray. Oil wicks up the cable and into the pendant body.
Nothing to flex, nothing to wick

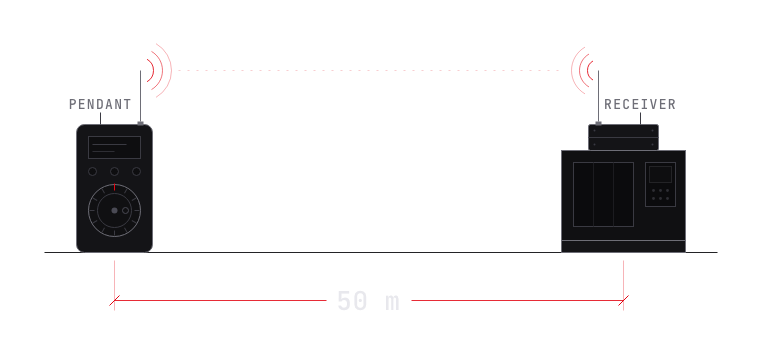

Sealed alloy body, oil- and dust-resistant keys, 50 m interference-free link, two months on two AA cells. Walk the machine, not the cable.

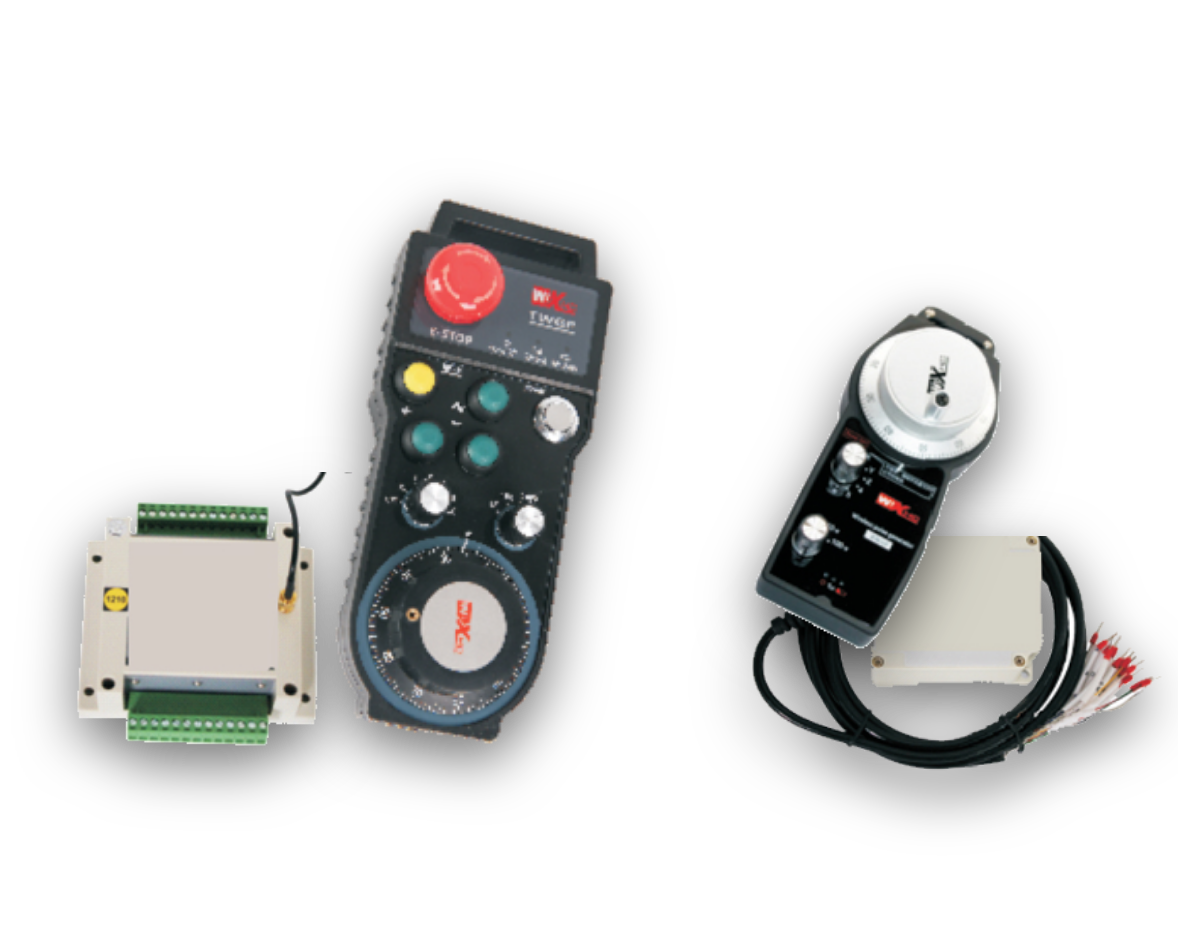

Two wireless MPG models

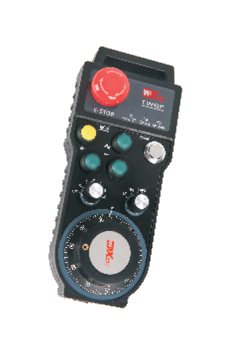

Basic for jog and touch-off, Advanced with E-stop for setup. Same 50 m link, same wheel feel, same 32-unit coexistence. Advanced adds the safety hardware operators ask for.
03 · Controller compatibility
Fanuc
Siemens
Mitsubishi
Fagor
Heidenhain
Others
Ten years of wireless MPG pendants on shop floors worldwide
Built for shops that have already thrown away one cheap import.
Years in production
Continuously manufactured and revised since 2014, with spares and firmware support for every generation shipped.
Basic and Advanced
One pendant for jog and touch-off, one for setup work with E-stop. Connector and pinout matched to your control.
Wireless MPG questions from the floor
What happens if the wireless MPG radio link drops mid-jog?
The receiver drops the enable and emergency relay outputs within 100 ms of link loss. The control sees the same state as a pulled cable and holds the axis.
Can 32 wireless pendants really run in one shop?
Yes. Each pendant is paired to its receiver by a unique address, and up to 32 pairs operate simultaneously on the same floor without interference.
Does a wireless MPG need CNC control software changes?
No. The receiver presents the same A/B quadrature, axis and rate signals as a wired MPG. It lands on the existing handwheel port with a matched pinout.
How long does a wireless MPG pendant battery actually last?
About two months on two AA alkaline cells under normal single-shift use; 30 days is the guaranteed floor. The pendant sleeps between pulses and wakes on handwheel or key activity.
Tell us your control.
We'll match the pinout.
Send your machine make, control model and MPG port type. Quotes for India and export orders returned within one working day.
